Hundreds of TestStand reports in seconds. What fails, where, and how capable.
Pick the folder where TestStand writes its native, lightweight ATML reports. See which test fails most, each measurement's history against its limits, and Cg, Cgk and Ppk under your customer's standard, then export to Excel and PDF ready to send right after your first NPI validation. On your PC, no server.
Download the free trial Buy a license
Perpetual license per computer from $ 1,999.00 MXN, one-time payment · 14-day trial with every feature, no key or account.
It reads what TestStand already writes. Everything stays on your PC.
TestStand's native report
ATML IEEE 1636.1 XML, the lightweight report TestStand already writes. No results database to set up, and TestStand doesn't need to be installed on that PC.
Your data stays on your PC
A local database on that machine, with no server, no account and no telemetry. It works offline, activation included.
One-time payment
A perpetual license for one computer, with no expiry. Try it first for 14 days with every feature.
Fast and exact, measured
In our test, 1,400 real reports imported in about 50 s, with the window responsive. Every value is read exactly as TestStand wrote it, with no copy and paste, and the Cg, Cgk and Gage R&R calculations are checked against an independent calculation.
What you build in a spreadsheet today, already done.
Which test fails most
Today Count by hand
With Report Analyzer Already ranked, with its values and limits
Capability for the customer
Today Copy values and formulas
With Report Analyzer Cg, Cgk, Ppk and a verdict per measurement
Another standard
Today Rebuild the sheet
With Report Analyzer One change and the table recalculates
One-sided limit
Today The template invents the other side
With Report Analyzer Only the limit that exists
The following week
Today Start over
With Report Analyzer Import the same folder: only new reports come in
From the reports folder to the document for your customer.
What fails most, and where
The tests that fail most, first, with their values and limits one click away. And the failure rate by station and socket, worst on top, so you know whether it's the unit or the nest.
Capability under your customer's standard
Cg, Cgk, Pp, Ppk, %EV and a verdict for every measurement, under AIAG MSA 4, AIAG MSA 3, VDA 5, Ford or your own standard. When an index makes no sense (no variation, two-state data), it flags it instead of giving you a misleading number.
See the drift before it fails
Every measurement in run order against its limits, with ±3σ bands, and its distribution against the normal curve. With a one-sided limit, it draws only the one that exists.
Reports ready to send after the first NPI validation
A three-step wizard exports the study to PDF with your logo, one page per measurement, and to Excel with the raw values so your customer can check every number. The failure summary exports to PDF and Excel too.
See it
What it looks like with a real folder of reports.
Short silent clips, recorded in Report Analyzer 4.0.1 with synthetic demo data from the BDB-100 product.
-

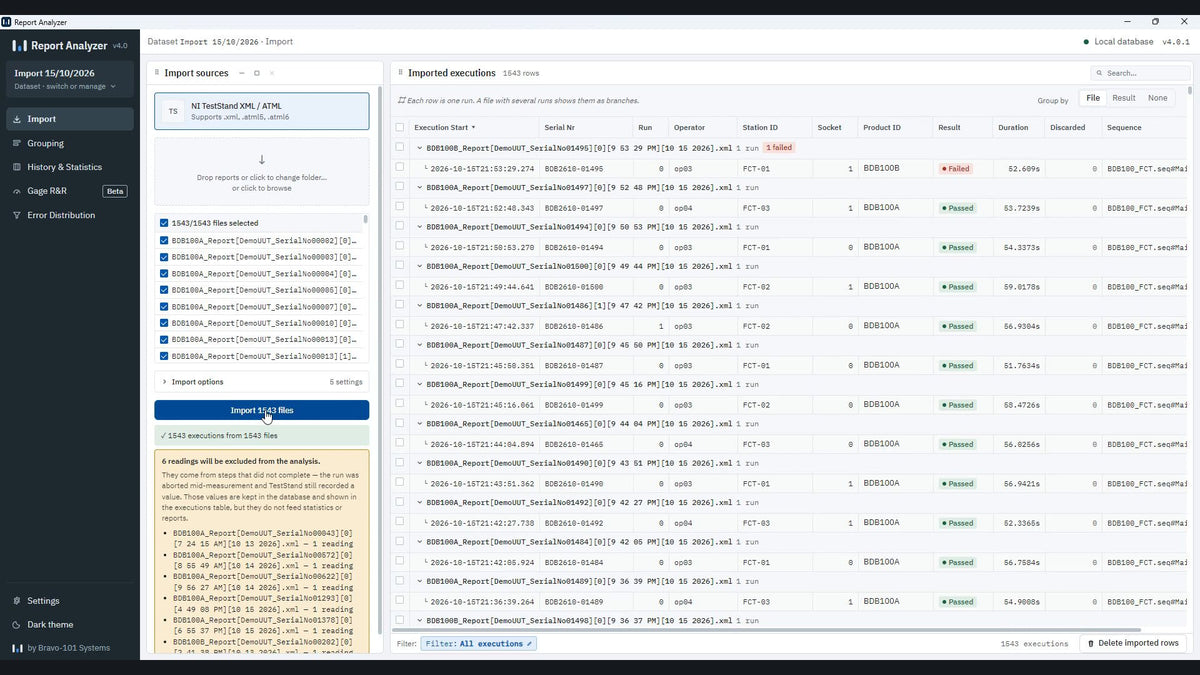

Pick the folder
Pick the station's folder in the Windows dialog and in come the native, lightweight ATML reports TestStand already writes. No database, no server. In the demo, 1,543 runs.
-

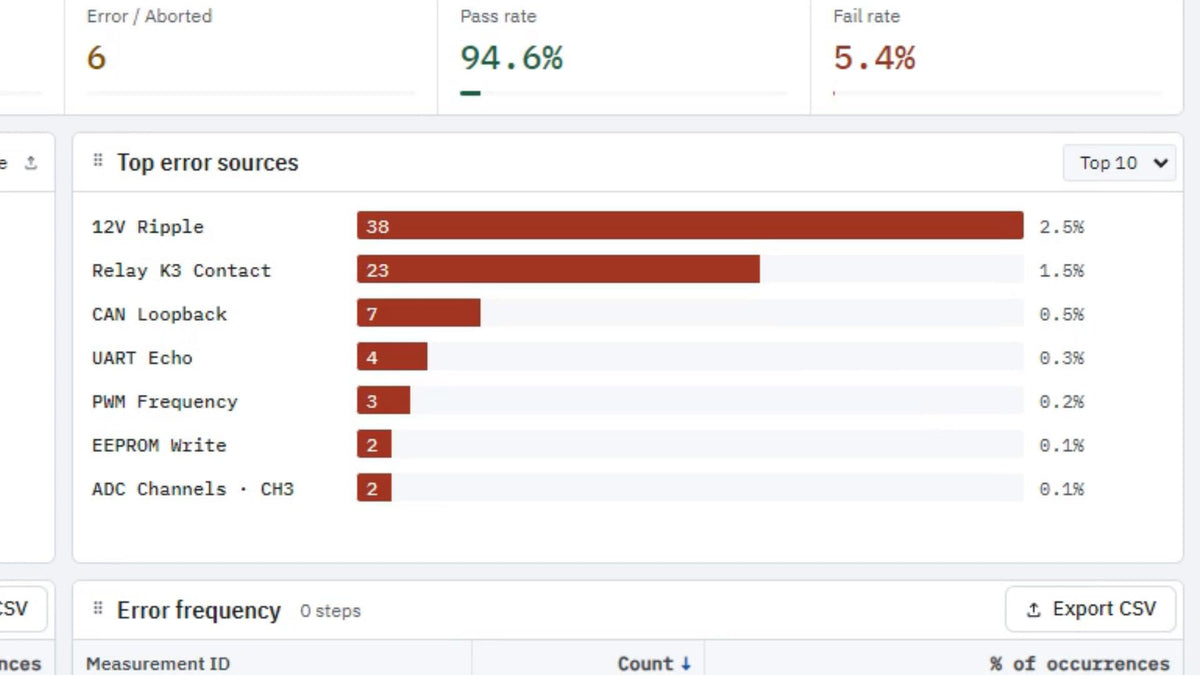

What fails most
Error Distribution ranks the tests that fail most, with their values and limits one click away. The short list of what to fix first.
-

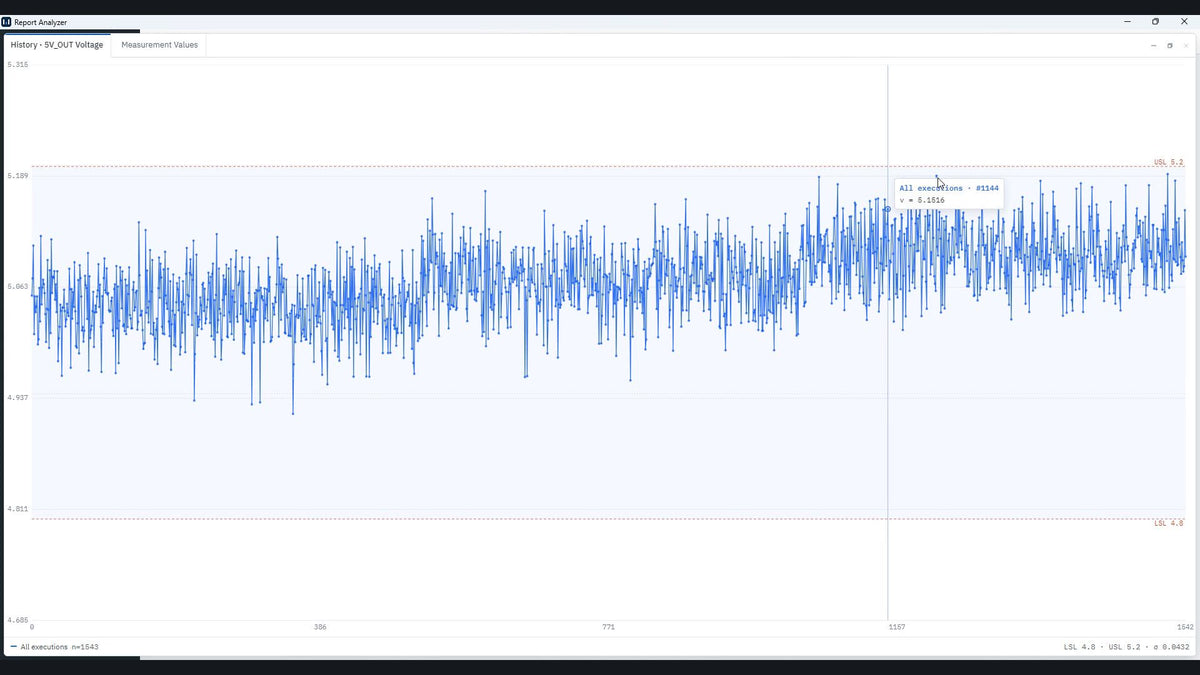

Healthy or drifting
3V3 Rail stays centered between its limits (Ppk 4.57). 5V_OUT Voltage still passes, but climbs toward its upper limit day after day (Ppk 0.99): you see it before it fails.
-

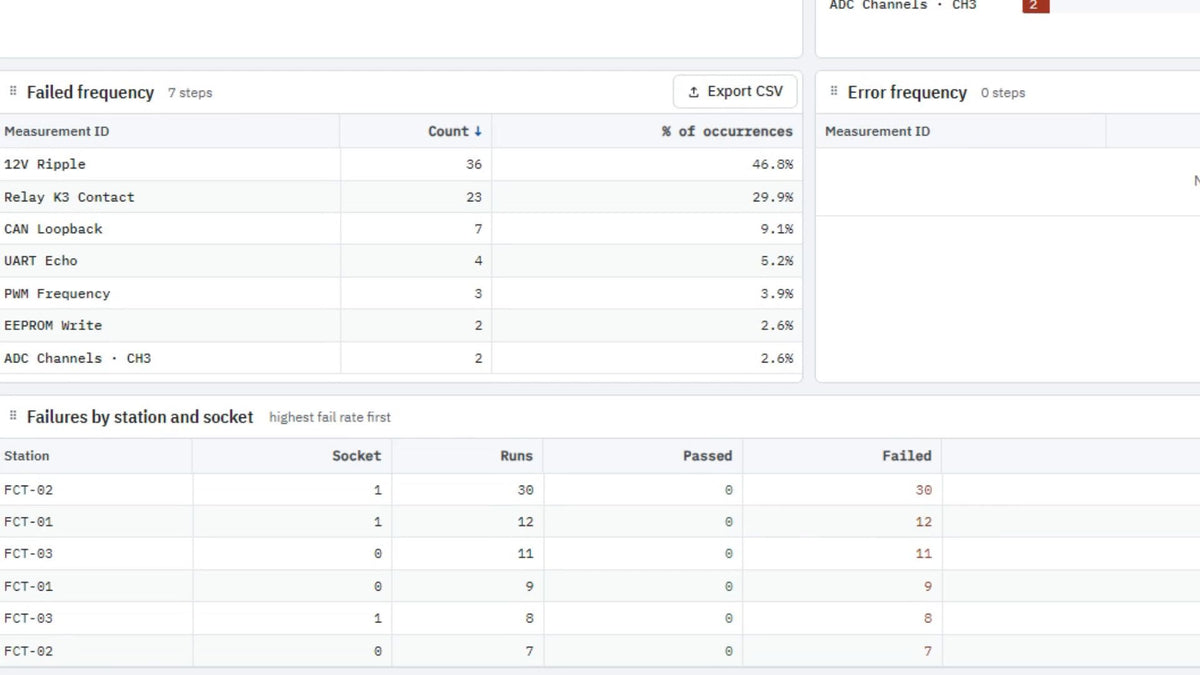

Failures only, as a group
Filter Result = Failed, make it a group, and Error Distribution shows where the failures pile up. In the demo, 30 of the 77 failures come from FCT-02 socket 1.
-

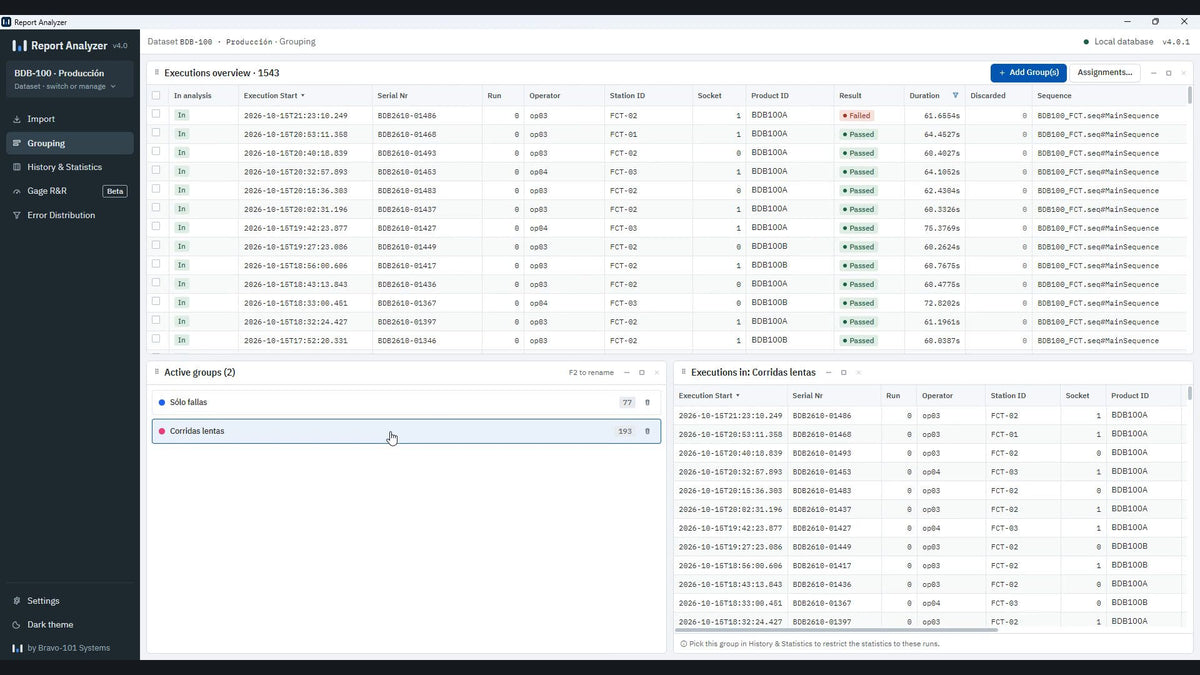

Slow runs, as another group
A rule on Duration (greater than 60 s) builds the group. In the demo that is 193 runs, 138 of them on FCT-02: the station to look at.
-

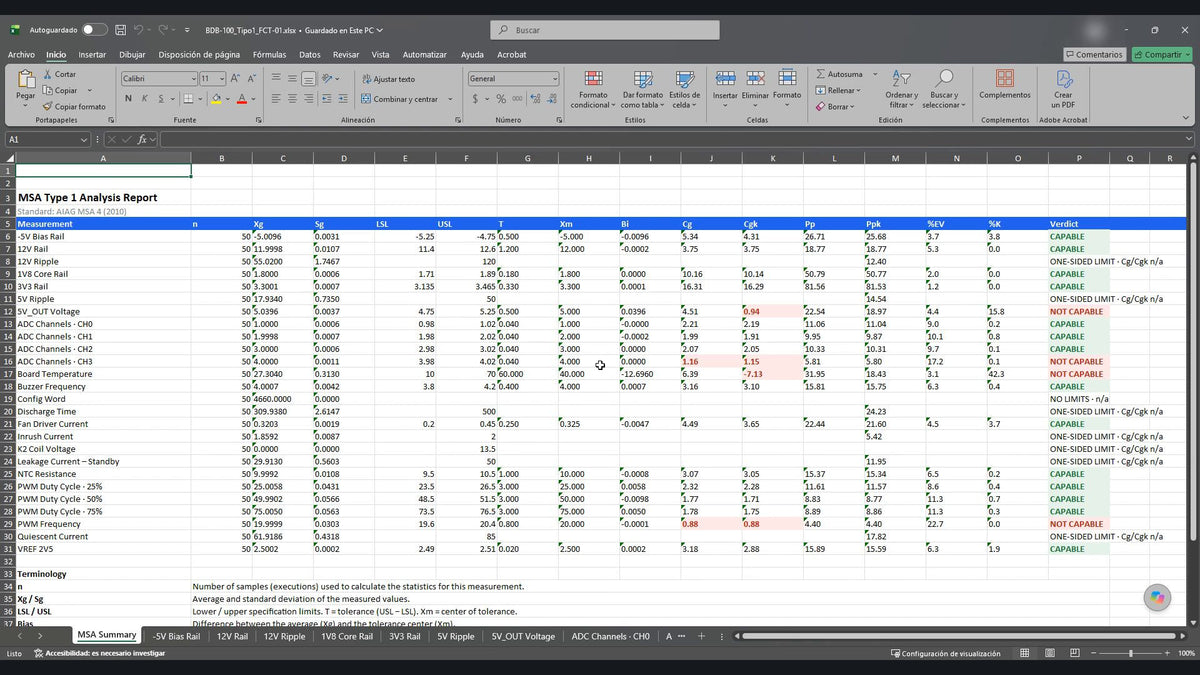

PDF and Excel, ready to send
After the first NPI validation, the Report Wizard exports in three steps. The PDF is your evidence that a station or a new product is stable; the Excel file is ready for your traceability system. In the demo, a Type 1 study of station FCT-01.
-

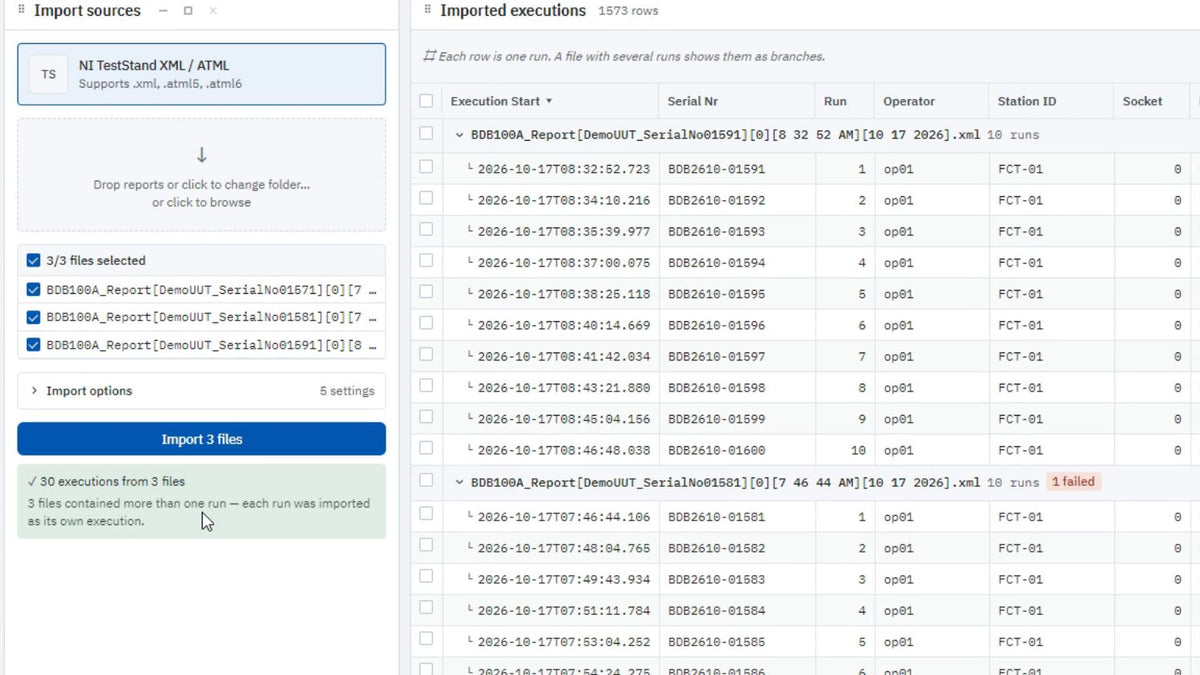

Several runs per file
If TestStand writes in append mode, each run in the file comes in as its own execution. In the demo, 3 files with 10 runs each.
-

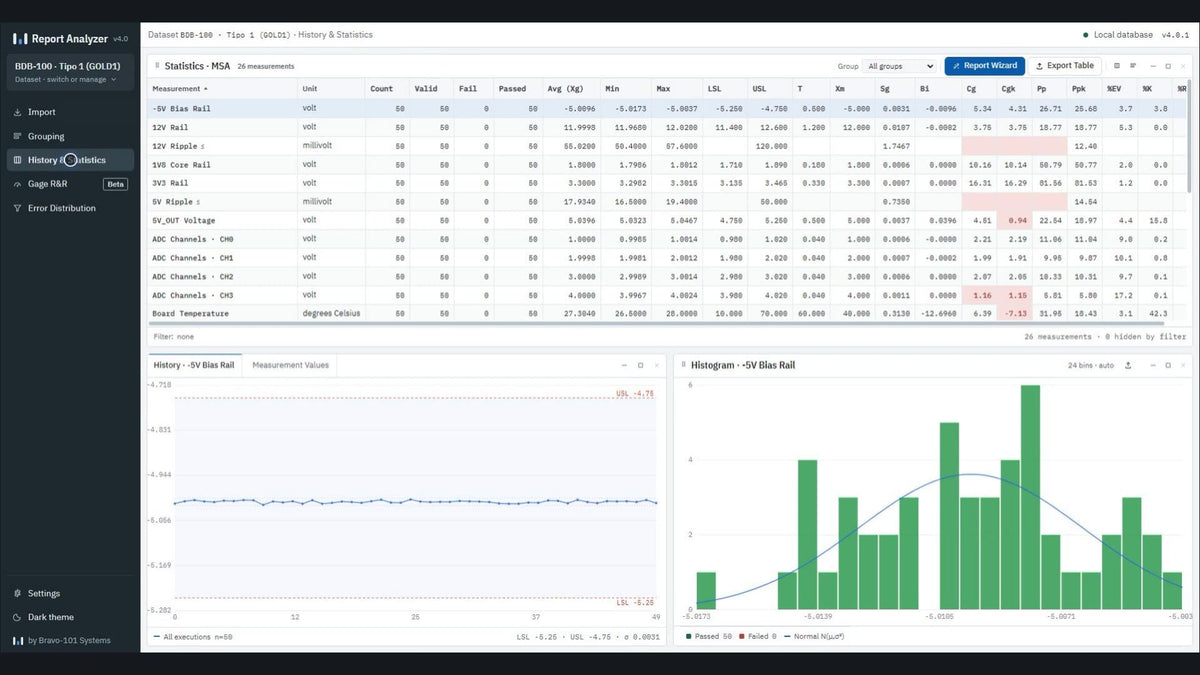

Type 1: Cg and Cgk
With a master unit measured many times, Cg and Cgk per measurement with your customer's standard. In the demo, 5V_OUT Voltage repeats well but has bias: Cgk 0.94.
-

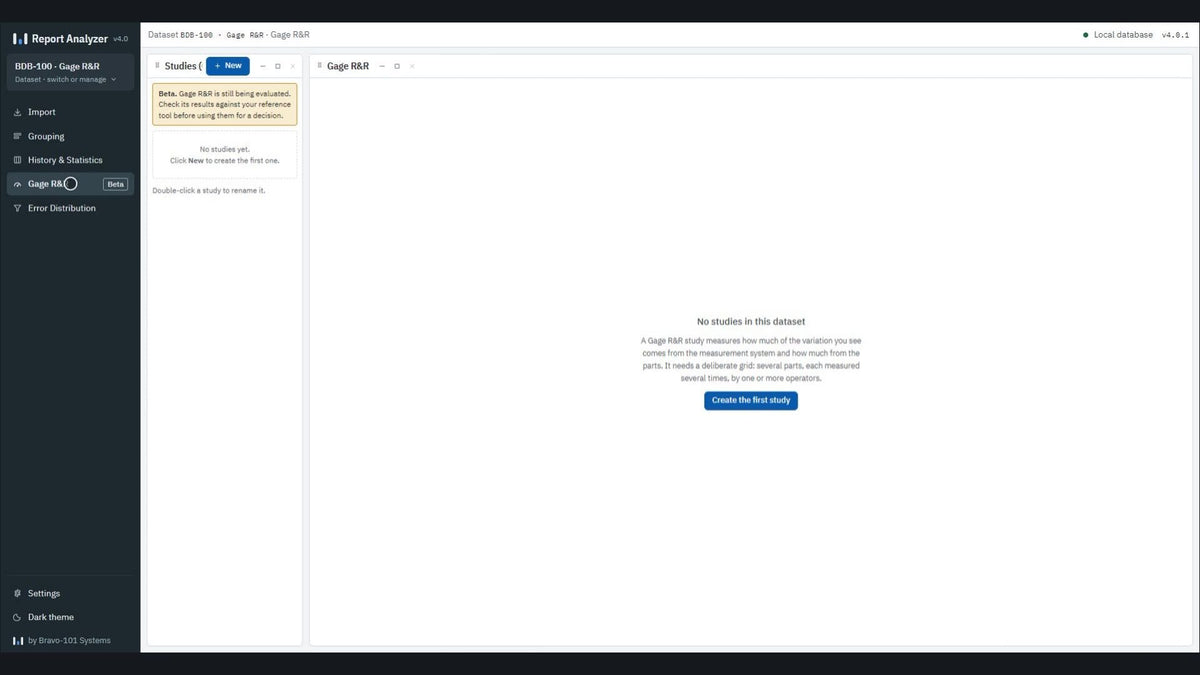

Gage R&R (Beta)
The grid of parts, operators, and repeats builds itself from the report data. Result per measurement: %GRR, ndc, and the AIAG verdict, with its ANOVA table.
It reads your reports the way TestStand wrote them.
Whole folders
Drag them onto the window and every report is imported.
Append mode
When a file holds several runs, each one comes in as its own execution.
No duplicates
Import the same folder again: only the new reports come in.
Incomplete reports
A report TestStand is still writing is rejected with a clear message.
Next week
Only what's new comes in. What's broken stays out.
-
Import the same folder again
Reports already in the dataset are skipped, and the app tells you how many. In the demo: 51 new runs and 508 that were already there.
-

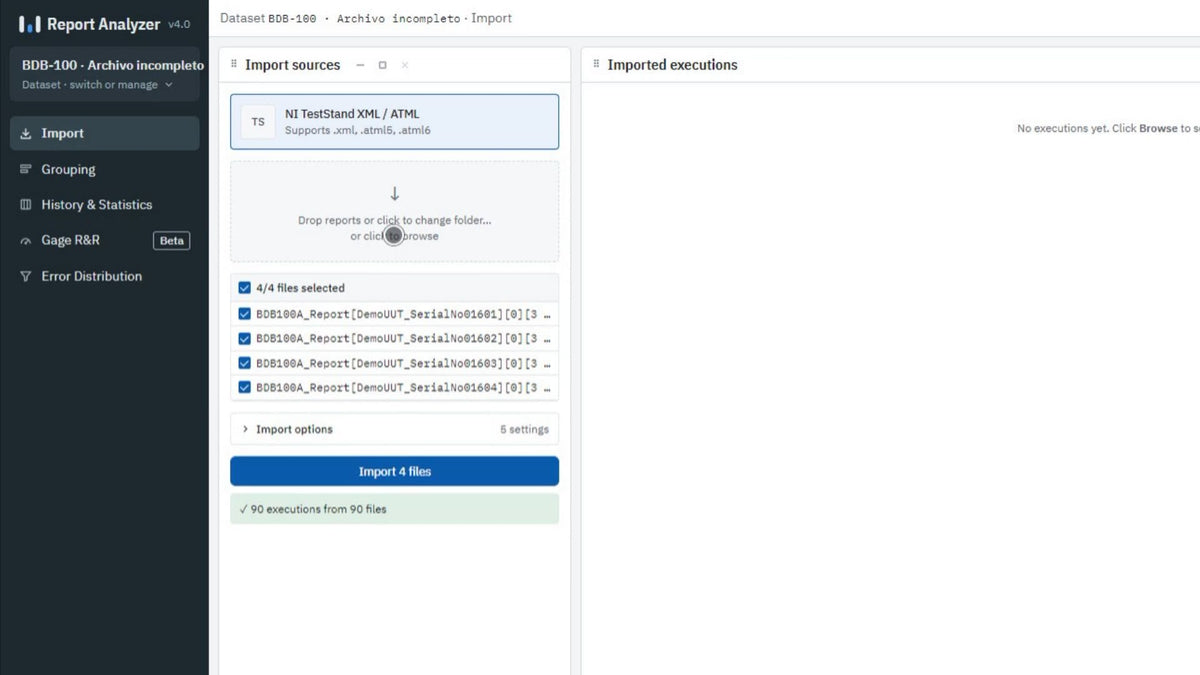

A truncated report is never half-imported
If TestStand was still writing the file, the import rejects it and says why. The rest of the folder comes in normally.
One license, one computer, no expiry.
1 · Try it
Download it and start the 14-day trial with every feature.
2 · Buy the license
Whenever you're ready; checkout doesn't ask for machine details.
3 · Activate it
Send your Device ID on “Activate your license” and get your key the next business day.
Specifications
Version 4.0.2 · Per-user MSI installer · Windows 10 and 11, 64-bit · Reads NI TestStand ATML IEEE 1636.1 XML · Local database · Exports PDF, Excel and CSV · No network required · English interface
The family
Just need to read one report?
Report Viewer is free and reads the same ATML report.
Do your limits change by part number?
Variant Manager changes what goes into the test; Report Analyzer shows you what that change did.
Documentation
How to set TestStand to write ATML, and every module, step by step.
Questions
What report format does it read?
ATML IEEE 1636.1 XML, which is what TestStand writes when the report format is set to ATML. If your sequences produce HTML or text, change the format in TestStand's report options; the documentation shows where.
Does my data leave my computer?
No. Every report is processed and stored on that same PC. There's no server, account, telemetry or cloud sync.
How many reports can it handle?
It's built for production volume. In our test it imported 1,400 reports in about 50 s with the window responsive.
Is the license a subscription?
No. It's a one-time purchase, valid permanently on one computer.
What if I change computers?
Contact us with the new Device ID and we'll reissue the key at no cost.
